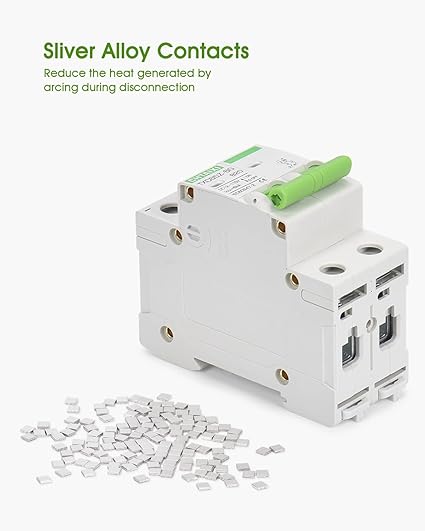

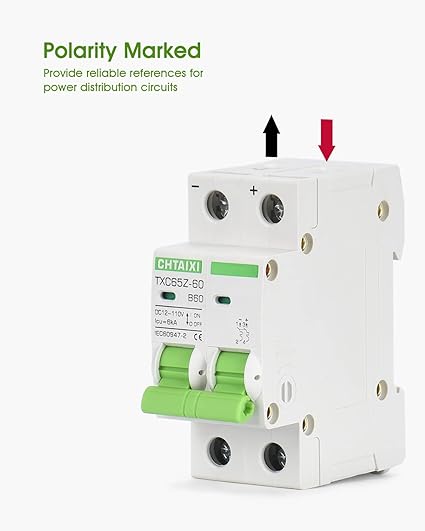

12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60 - Image 2
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60 - Image 3
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60 - Image 4
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60 - Image 5
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60 - Image 6
12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60 - Image 7

12V-110V DC Miniature Circuit Breaker, 60 Amp 2 Pole Battery Breaker Protector for Solar PV System and RV, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch B60

Category:

Description

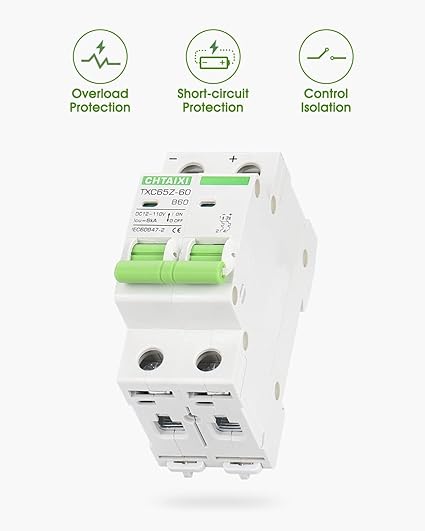

  • FUNCTIONS: Used to protect 12V 24V 36V 48V 60V 100V DC circuit from overload and short circuit damage, and can also be used for control and isolation.
  • FAST TRIP: The electromagnetic trip system can trip immediately when short-circuited.

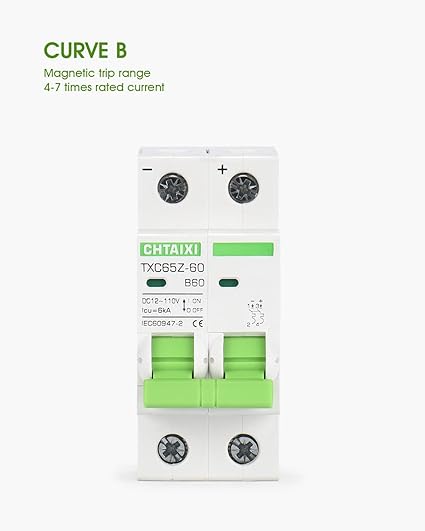

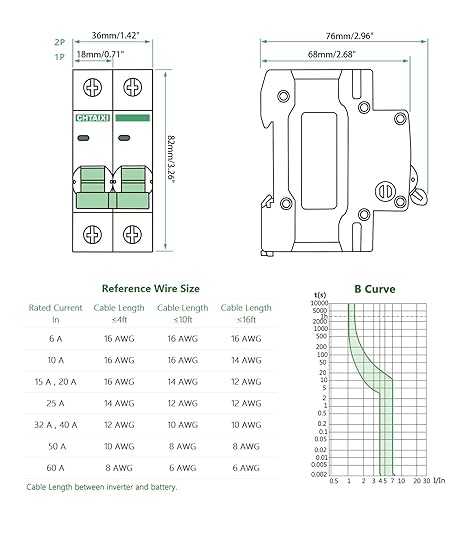

  • CURVE B: Magnetic trip range 4-7 times rated current.
  • APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.
  • INSTALLATION: Screw clamps wire or M5 wire lug (size fits), 35 mm DIN rail mount.
